2013 Cummins MEP1060

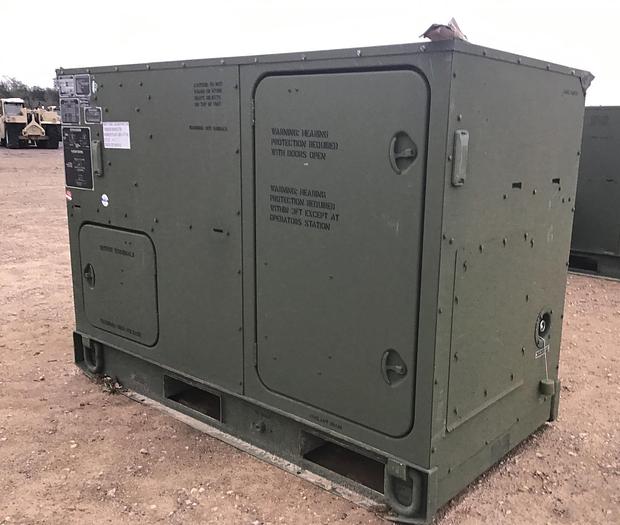

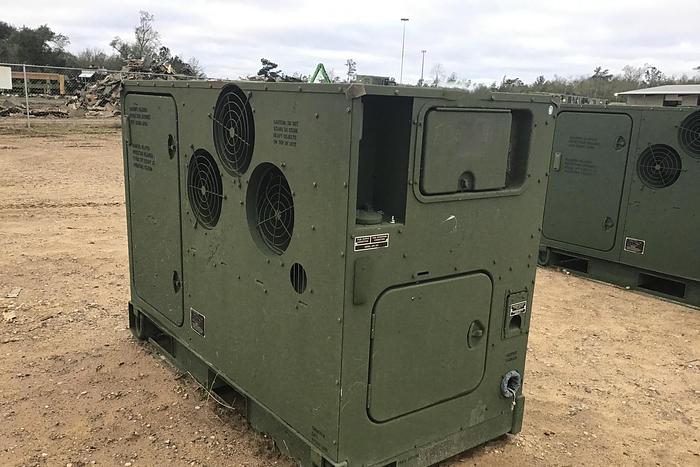

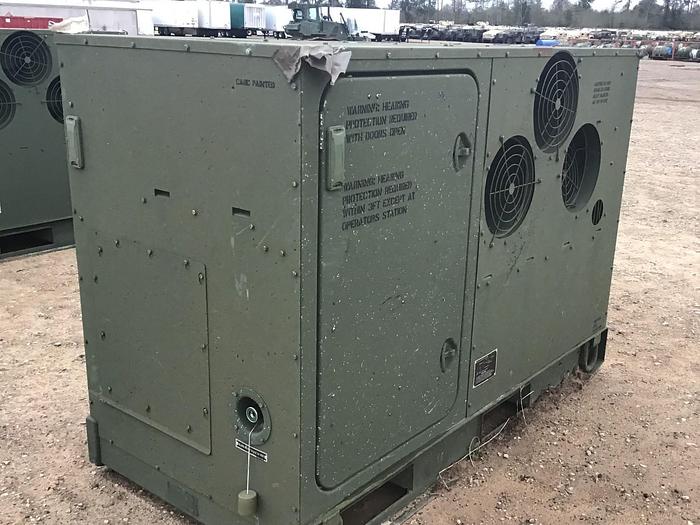

The 30kW AMMPS Generator Set, MEP-1060, is a self-contained, skid mounted, portable unit. It is equipped with controls, instruments and accessories necessary for operation.

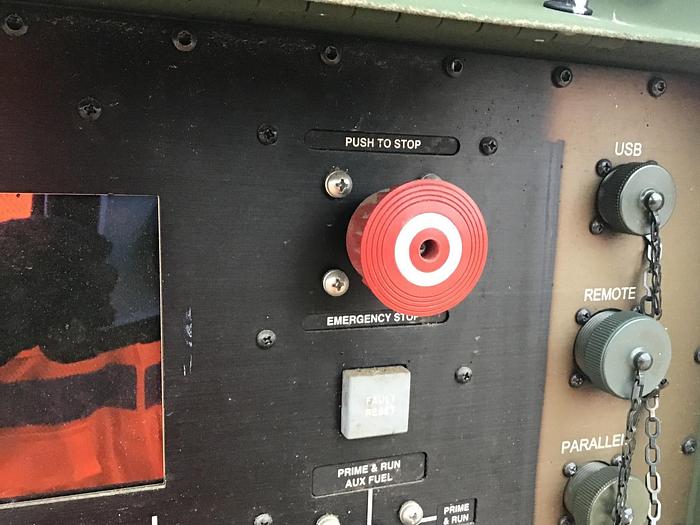

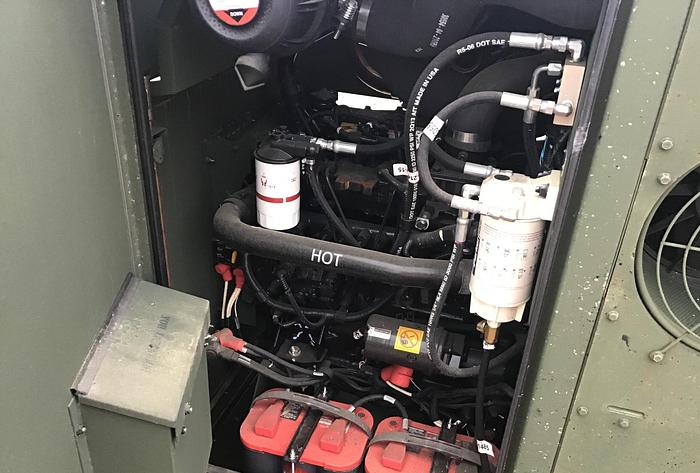

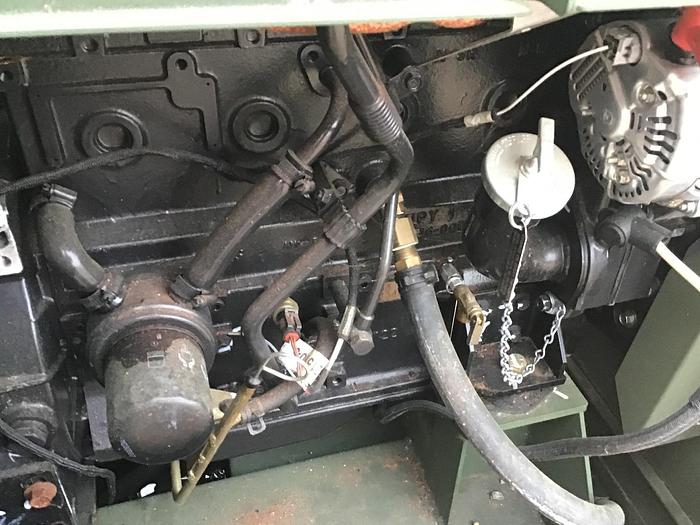

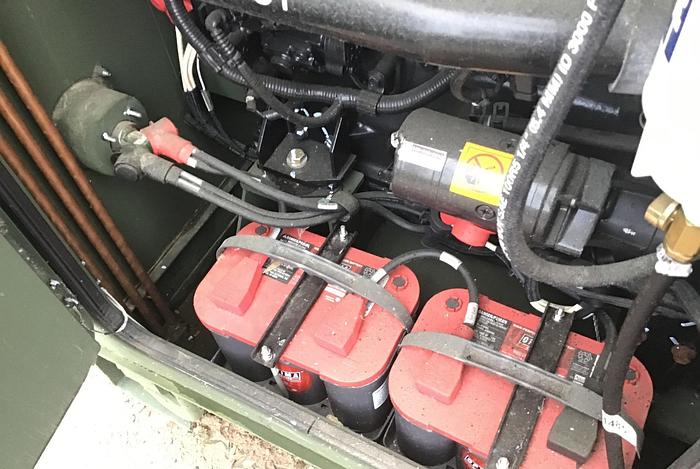

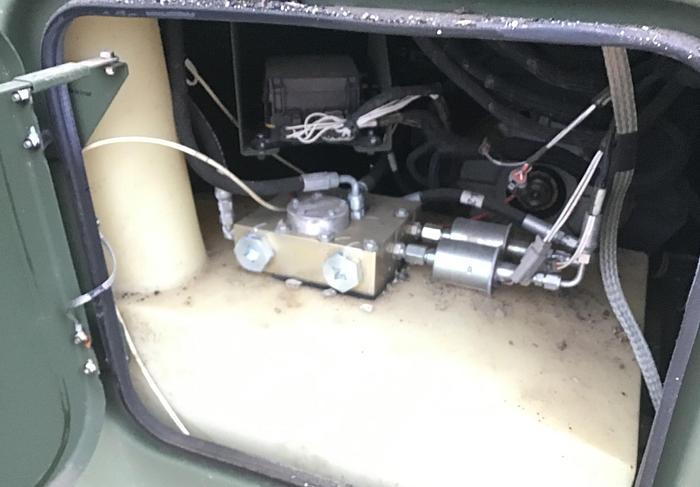

The generator set consists of a diesel engine, brushless generator, excitation system, speed governing system, fuel system, 24 VDC starting system, control system and fault system.

The generator set can be used with any equipment requiring a

medium source of AC power.

Model: MEP-1060

Fuel Type: Diesel/JP-8/F-24

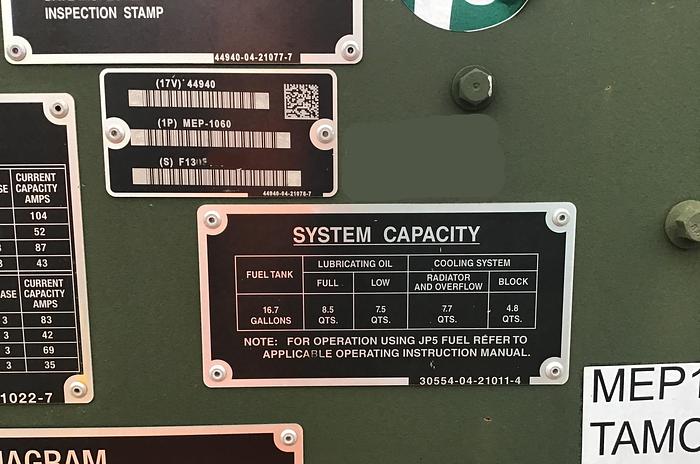

Fuel Capacity (Gal): 16.7

Engine Average Fuel Consumption (GPH):1.59

Manufacturer: Cummins

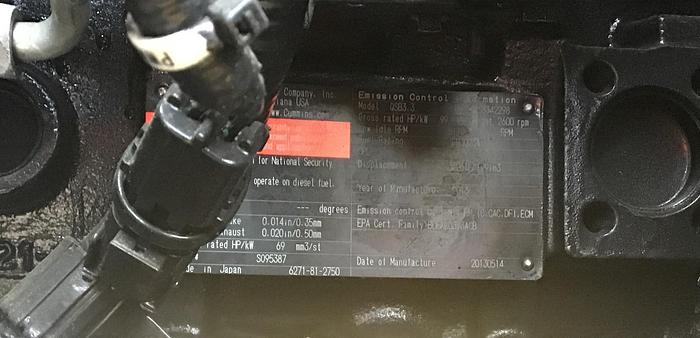

Model: QSB3.3 Tier III

Displacement: 201.37 in3 (3.3L)

Type: 4 Cycle

Cylinders: 4

Speed (RPM): 1,800

Operating Temperatures : -50°F to +135°F

Shipping Dimensions

Length (in): 75.0

Width (in): 36.0

Height (in): 52.8

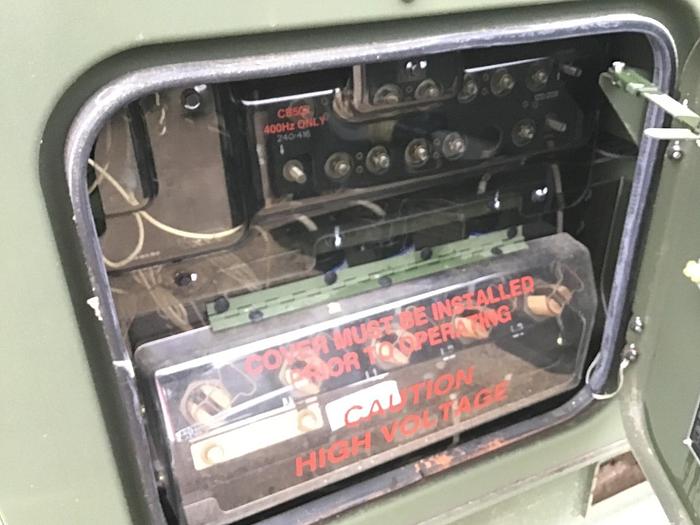

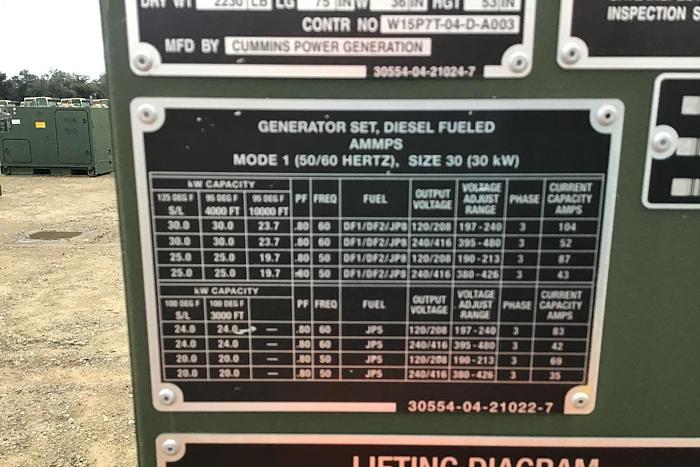

Output AC: 120/208/240/416, 50/60Hz

Square (ft2)/Cube (ft3): 18.8/82.5

Weight (lbs) Dry: 2,200.0 Wet (Coolant & POLs): 2,330.0

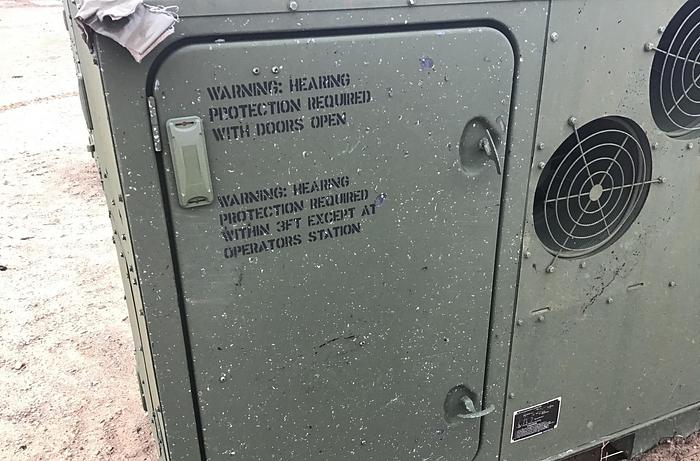

Audio Rating: 70dBA @ 7m
